Description

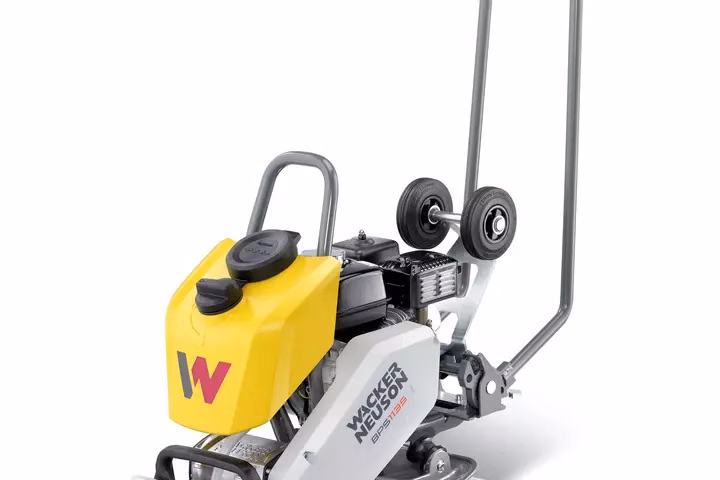

BPS Single-direction vibratory plates: Excellent handling and maneuverability on soil and asphalt The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.
Specifications
Manufacturer
Wacker Neuson
Model
BPS1550Aw
Year
2026
Category
Compactors
Subcategory
Single Direction Vibratory Plates
Engine 1
Honda GX160-UH2-QW-X2-SD
Nominal Engine speed
3,600 1/min
Effective power
4.2 PS
Cylinder
1
Cylinder capacity
9.9 Inch3
Fuel consumption
0.2 GPH US
Tank capacity
1 gal US
Operating power
3.9 PS
Engine type
Gasoline engine
Fuel
Gasoline
Standard (Effective power)
ISO 3046 IFN
Standard (Operating power)
ISO 3046 IFN
Engine Manufacturer
Honda
Length Baseplate
23.6 "
Width
19.7 "
Width Baseplate
19.7 "
Height
26.1 "
Height Cover frame
26.1 "
Thickness Baseplate
0.4 "
Ground clearance
26.1 "
Operating weight
183 lb
Centrifugal force
3,372 lbf
Area capacity
8,073 ft2/h
Forward Running
1.4 fps
Gradeability
36.4 %
HAV summation (average value)
13.5 ft/s2
HAV summation (Standard)
EN 500-4
