Description

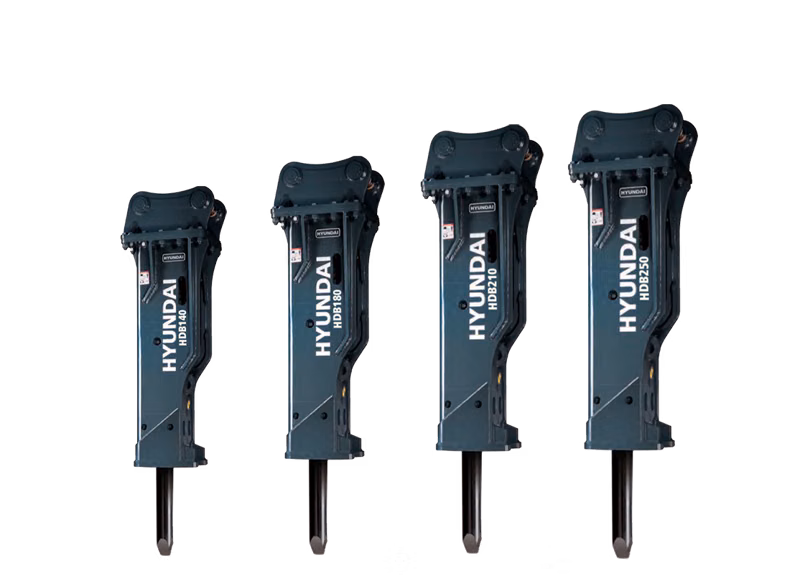

Hyundai midsize breakers are suited to fit excavators ranging from 14 ton to 25 ton. If equipped on a Hyundai excavator, standard equipped mounting brackets are designed to match up perfectly with the Hyundai linkage. If you would like to use on another brand of excavator, Hyundai dealers can match a custom mounting bracket to fit any machine.
Specifications
Manufacturer
Hyundai
Model
HDB250
Year
2026
Category
Breakers
Subcategory
Midsize Breakers
Operating Weight (Top Box BKT)
2165 kg (4773 lb)
Operating Weight (Side BKT)
2020 kg (4453 lb)
Impact Power
6530 Ft Lbs (8850 J)
Suitable Excavator
22~29 ton (48502~63934 lb)
Overall Length (w/STD MTG BKT)
2898 mm (114.1 inch)
Overall Length (wo/MTG BKT)
2526 mm (99.4 inch)
Overall Length (Side BKT)
2457 mm (96.7 inch)
Chisel Out Dia
145 mm (5.7 inch)
Chisel Length
1280 mm (50.4 inch)
Setting Pressure
210 kgf/cm<sup>2</sup> (2987 psi)
Working Pressure
140~180 kgf/cm<sup>2</sup> (1991~2560 psi)
Oil Flow
150~210 lpm (39.6~55.5 gpm)
Blow Rate (H/ Speed)
250~350 (300~450) BPM
Back Head N2 Gas Pressure
11 kgf/cm<sup>2</sup> (156 psi)
