Description

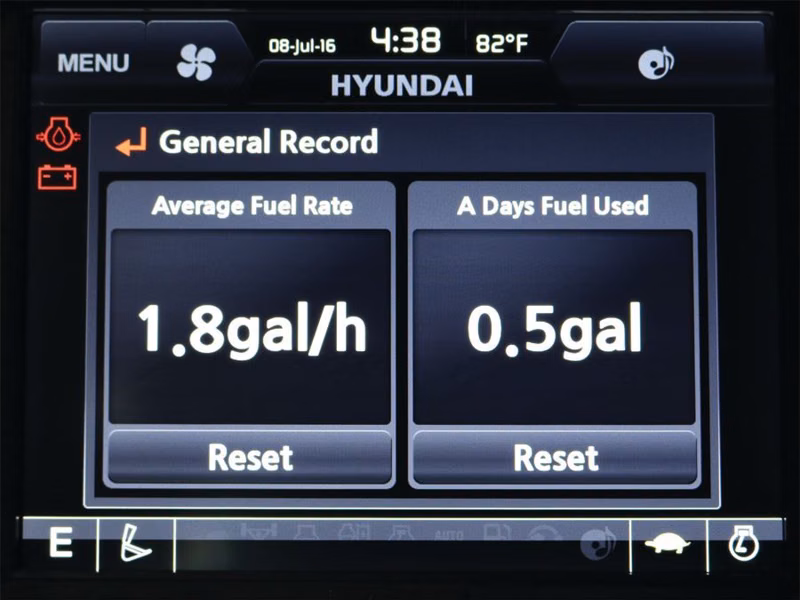

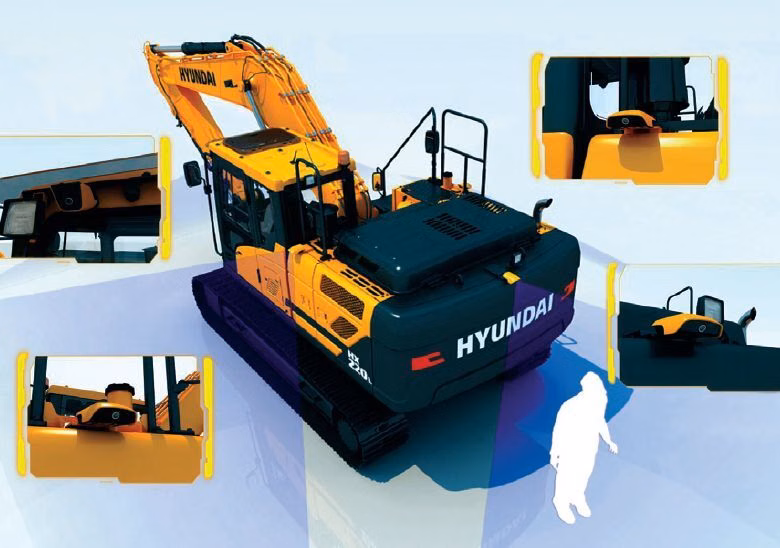

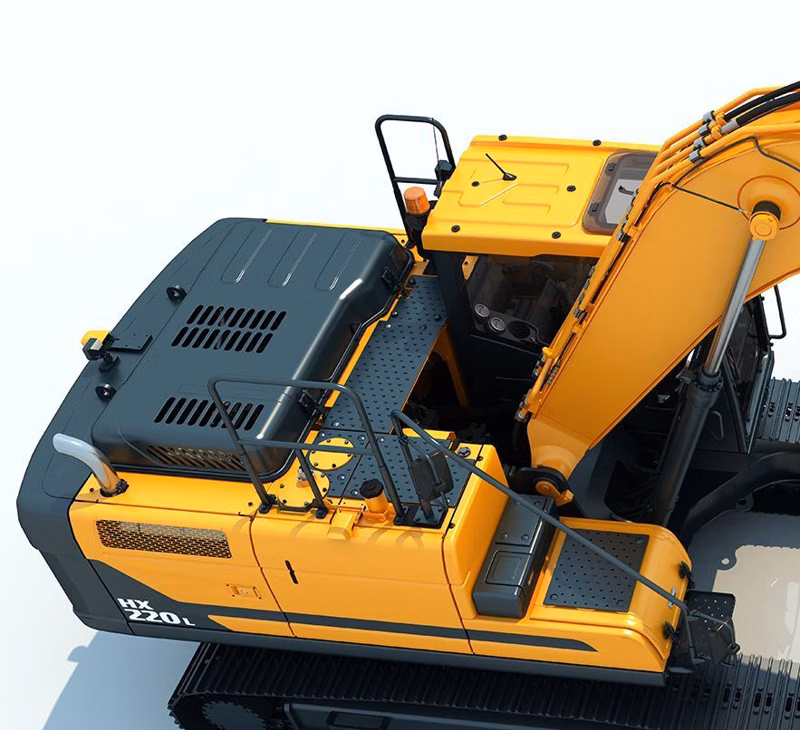

Powered by a Cummins X12 Stage 5 / Tier 4 Final diesel engine, the HX480A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs. All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Specifications
Manufacturer
Hyundai
Model
HX480A L
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
50,690 kg (111,752 lb) - 52,660 kg (116,095 lb)
Bucket Range
2.2 m3 (2.88 yd³)
Swing Speed
9.0 rpm
Travel Speed (Mph)
3.3 km/hr (2.1 mph) / 5.3 km/hr (3.3 mph)
Bucket Breakout Force
25,300 [27,600] kgf (55,780 [60,850] lbf)
Arm Crowd Force
20,200 [22,040] kgf 44,530 [48,590] lbf ) ISO
Net Power
395 HP (295 kW) at 2,100 rpm
Max Digging Depth (Ft/In)
7,760 (25' 6")
Max Digging Reach
12,040 (39' 6")
Tail Swing Radius (Ft/In)
3,800 (12' 6")
Engine Model
Cummins X12
Net Power
395 HP (295 kW) at 2,100 rpm
Quick Enquiry
Excavators Hyundai Items for Sale Lowell,
Find this Hyundai HX480A L at Lowell, IN
