Description

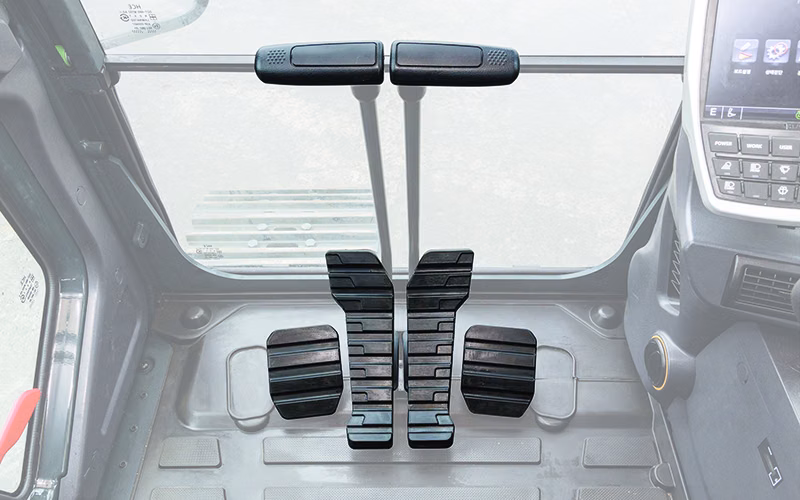

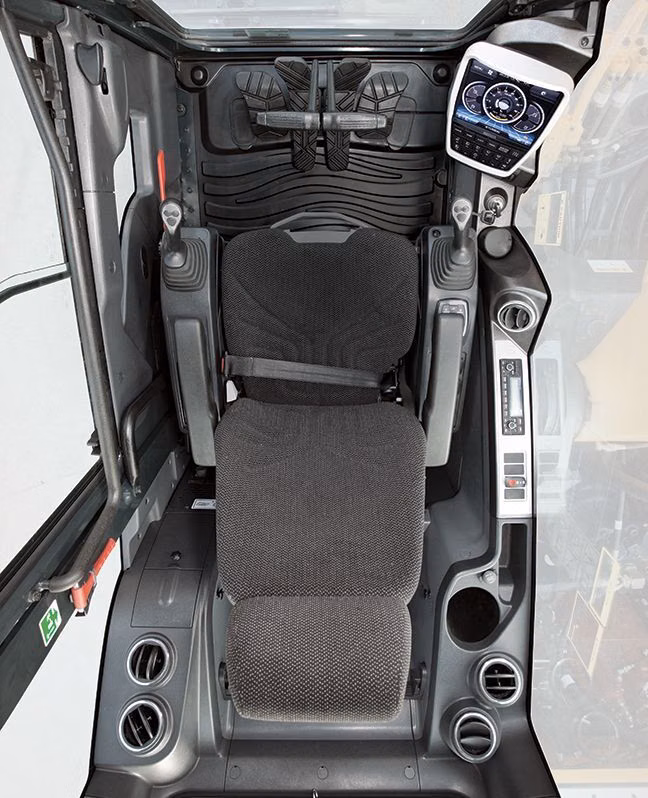

Powered by a Cummins X12 Stage 5 / Tier 4 Final diesel engine, the HX520A L complies with the international Stage 5 emissions control standard. New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs.All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.
Specifications
Manufacturer
Hyundai
Model
HX520A L
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
54, 750 kg (120, 704 lbs)
Bucket Range
2.6 m3 (3.41 yd³)
Swing Speed
9.0 rpm
Travel Speed (Mph)
3.3 km/hr (2.1 mph) / 5.3 km/hr (3.3 mph)
Bucket Breakout Force
28,600 [31,200] kgf 63,050 [68,780] lbf ISO
Arm Crowd Force
20,200 [22,040] kgh 44,530 [48,590] lbf ISO
Max Digging Depth (Ft/In)
7,610 (25' 0")
Max Digging Reach
12,040 (39' 6")
Tail Swing Radius (Ft/In)
3,945 (13' 0")

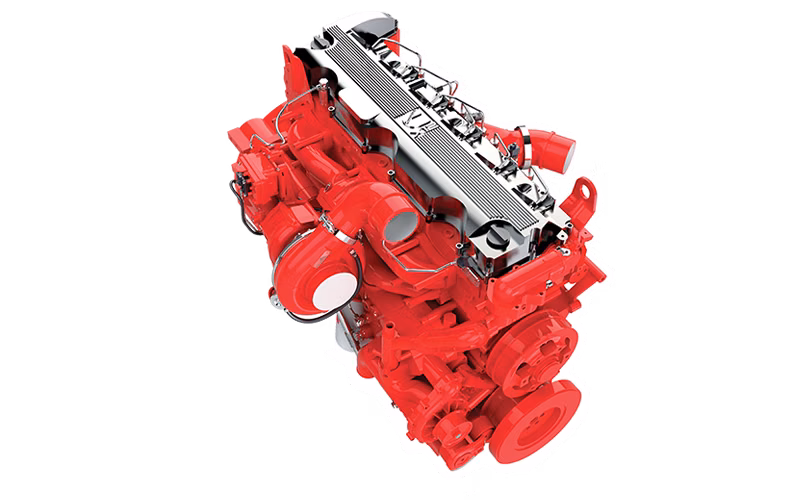

Engine Model
Cummins X12
Net Power
395 HP (295 kW) at 2,100 rpm
