Description

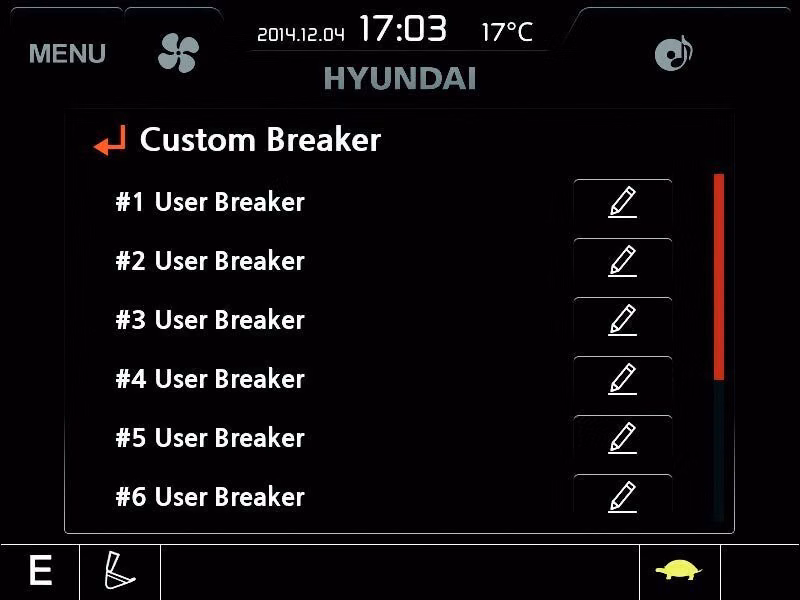

Hyundai excavators are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HX series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator’s cab in each HX series excavator is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.
Specifications
Manufacturer
Hyundai
Model
HX220A LR
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Operating Weight
25,420 kg (56,040 lbs)
Swing Speed
11.4 rpm
Travel Speed (Mph)
5.4 km / hr (3.41mph) / 3.5 km / hr (2.2 mph)
Bucket Breakout Force
8670 kgf (19/110 lbf ) ISO
Arm Crowd Force
5,090 kgf ( 11,220 lbf ) ISO
Bucket Range
0.52 m3 (0.68 yd3)
Max Digging Depth (Ft/In)
11,760 mm (38 ft 7 in)
Max Digging Reach
15,220 mm (50 ft 0 in)
Tail Swing Radius (Ft/In)
2,890 mm (9 ft 5 in)
Engine Model
Cummins QSB6.7
Net Power
170 hp (127 kW) at 2,200 rpm
