Description

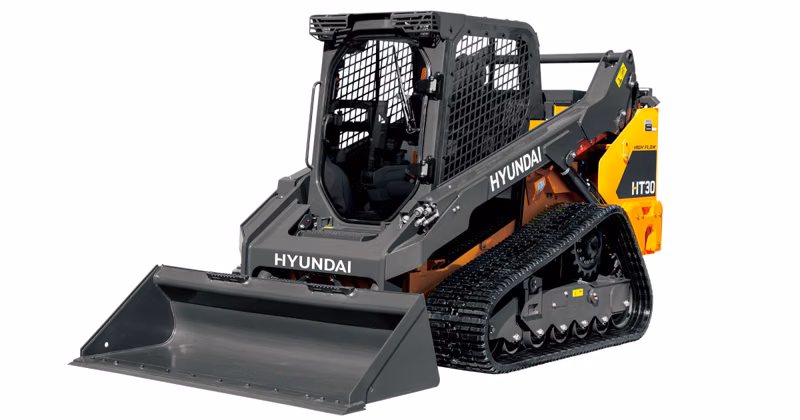

A medium-frame compact track loader, the Hyundai HT30 is a “do-it-all” tool carrier that provides the power, lift capacity and versatility you need for most landscaping, residential construction, municipal, agricultural and rental applications. Available in three configurations – cab version with hydraulic high-flow, cab version with standard hydraulic flow, and canopy version – the 72 net hp HT30 has a rated operating capacity of 3,028 pounds. Whether you use HT30 for site prep or finish grading, snow removal or utility work, lifting pallets, material handling or cleanup work, you will appreciate the productivity, performance, comfort, serviceability and safety features available on this CTL, which includes more standard features than many competitive models in its size class.
Specifications
Manufacturer
Hyundai
Model
HT30
Year
2026
Category
Loaders
Subcategory
Compact Loaders
Engine Make
HYUNDAI
Engine Model
DM02
Emissions certification
Tier 4 Final / Stage V
Number of cylinders
4
Rated power, gross (hp per SAE J1995)
72.7 hp (53.5 kw) @ 2,600 rpm
Rated power, net (hp per SAE J1349)
72.7 hp (53.5 kw) @ 2,600 rpm
Maximum torque, gross (SAE J1995)
206.5 ft-lbs (28.55 kfg-m) @ 1,600rpm
Displacement
146 in³ (2,302 cc)
Bore and stroke
3.5 x 3.7 in (90 x 94 mm)
Starter
12 V, 4.5 hp (3.3 kW)
Asperation
Turbocharged
Alternator
12 V, 90 A
Air filter
PowerCore
Aftertreatment
DOC
Battery
12 V, 100 AH
Track width
15.7"(400 mm) / 17.7"(450 mm)
Hydraulic pressure (Basic)
3,336 psi (23,000 kPa)
Hydraulic flow (Basic)
24 gpm @ 2,600 rpm
Hydraulic pressure (High-Flow)
4,061 psi (28,000 kPa)
Hydraulic flow (High-Flow)
35 gpm @ 2,600 rpm
Hydraulic tank capacity
8 gal (30.2 L)
Operating weight
Canopy: 10,448 lb (4,739 kg) / Cabin: 11,141 lb (5,053 kg)
Breakout force (bucket)
6,905 lbf (3,132 kgf)
Breakout force (lift arm)
6,219 lbf (2,821 kgf)
Tractive force
45.5 lbf (30 kN)
Lift arm path
Vertical
35% tipping load
Canopy: 2,900 lb (1,316 kg) / Cabin: 3,072 lb (1,393 kg)
Tipping load
Canopy: 8,287 lb (3,759 kg) / Cabin: 8,777 lb (3,981 kg)
Rated operating capacity with optional counterweight
3,200 lb (1,496 kg)
ROPS
ISO1347:2008
FOPS
ISO3449:2005, Level1
Undercarriage Type (Canopy)
Rigid Mount
Undercarriage Type (Cabin)
Torsion Suspension
Ground pressure
4.7 psi (0.33 bar) / 4.2 psi (0.29 bar)
No of track rollers (per side)
5
Travel speed (2-speed) low
5.9 mph (9.5 km/h)
Travel speed (2-speed) high
8.7 mph (14 km/h)
Track tension type
Grease
Front idler
Double (std ) / Triple (opt )
Rear idler
Single (std ) / Triple (opt )
Fuel tank capacity
24 gal (90.8 L)
Cooling system (radiator capacity)
2.6 gal (9.8 L)
Engine oil capacity
3.9 gal (14.7 L)
Sound Inside cab (ISO 6396:2008)
75 dB(A)
Sound Outside cab (EU Directive 2000/14/EC)
99.5 dB(A)
